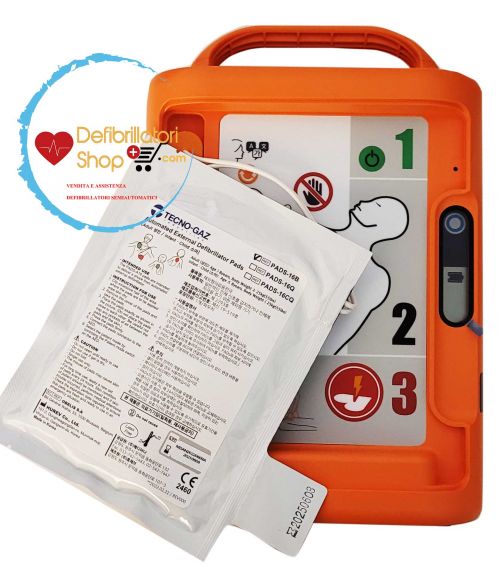

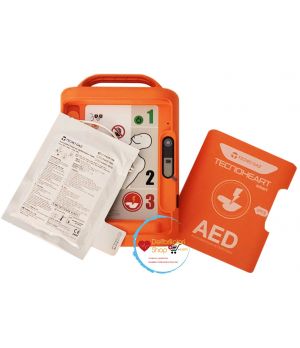

TECNOHEART SMART Semi Automatic Defibrillator - Request a quote - OFFER OF THE DAY

TECHNICAL SPECIFICATIONS

ELECRTICAL DEFIBRILLATION SHOCK

Waveform

Biphasic Truncated Exponential (BTE) waveform (impedance compensation)

Energy

Adult: from 170 to 195J (±5%)

Paediatrico (newborn-child): form 44 to 51J (±5%)

Operation mode

semi-automatic, fully automatic

ECG

Source: II (RA, LL)

Patient impedance: 25 to 200 ohms

Heart rate: 20 to 350 per minute

Accuracy: 1 per minute

Detection:

V/F greater than or equal to 0.2 mV

V/T Adult: greater than or equal to 150 bpm

Paediatric (infant-child): greater than or equal to 180 bpm

Connector connection: Connection confirmation and voice message output

Filter: 0.5 to 30 Hz Pacemaker detection

The AED can detect or reject implanted pacemaker impulses for the analysis of the rhythm

Indication

orded

Standard: Power button, discharge button, patient mode button, language selection button

Indication

Visible: action icon, LCD status (DAE status, battery status, temperature status, pads status), LED

acustic signals: loudspeaker (vocal messages, RCP clues) Bip (RCP clues, starting, dead battery , autotest failed, irregular functioning signal)

Physical characteristics

sizes: 200 × 286.5 × 90 (mm) (W×H×D)

Weight.1.95 kg battery included

Degree of protection against electric shock: Type CF electrodes with defibrillator protection.

Environmental Conditions

Operation/Standby

Temperature: 0 to 43°C (32 to 109.4°F)

Humidity: relative 5 to 95% RH (non-condensing)

Altitude: 0 to 4,575 m

Discharge Acceleration: 100 G (+/- 10%)

Time: 6 ms

Number of discharges: 3 times/axis (6 axes (+/- X, Y, Z))

Vibration Frequency: 10Hz to 2,000Hz

Acceleration: 10 Hz to 100 Hz: 5.0 (m/s²)²/Hz

100 Hz to 200 Hz: -7 dB per octave

200 Hz to 2000 Hz: 1.0 (m/s²)²/Hz

Drop height: 0.75m

Water and dust resistance: IP55 (IEC60529)

Note: Standby condition indicates that the self-test is performed periodically with batteries installed in the AED.

Storage (in the shipping box)

Temperature: -20 to 60°C (-4 to 140°F)

Relative humidity: 5 to 95% RH (non-condensing)

Altitude: 0 to 12,192 m

Autotest

Temperature: 0 to 43°C (32 to 109.4°F)

Cycle: Every 24 hours, 1 week, 1 month

self-test power, battery insertion self-test

Test results LCD status indicator shows "O"/"X".

Note: Only once the battery is installed will the self-test be activated.

Data backup and communication

Standard SD card, Infrared communication port

Life expectancy: 10 years

Accessory Specifications

Electrodes

Adult/Paediatric (newborn/Child) Electrodes

Period of validity: Refer to electrode direction while the use

Electrodes: Disposable electrodes

Positioning Adult: Anterior-lateral

Paediatric (infant/child): Anterior-posterior

Minimum gel adhesion area: 80 cm2 +/-5%.

Cable length: Approx. 1.8 m

Environmental Conditions

Operating temperature: 0 to 43°C (32 to 109.4°F)

Storage: 0 to 43°C (32 to 109.4°F)

Relative humidity: 5 to 95% RH (non-condensing)

Battery

Type: LiMnO2, Disposable, Long-life Primary Cell

Voltage/Capacity: 15V, 4200 mAh

Expiry date (in original packaging): 2 years from production date

Standby time (in AED): 5 years from date of manufacture

Discharge: Minimum of 200 electrical discharges (excluding CPR period between defibrillation therapy) or 6 hours of operation at 20°C

Environmental Conditions

Operating Temperature: 0 to 43°C (32 to 109.4°F)

Storage: 10 to 25°C (50 to 77°F)

Relative humidity: 5 to 95% RH (non-condensing)

Warranty:

5 years.

The manufacturer reserves the right to make technical changes without prior notice.
